Click on the thumbnails to see a full
picture of the Metropolitan Radio information you want to view.
This will hopefully help you work on your Met radio
or see how it works

The enlarged pictures may take a little longer
to download, please be patient.

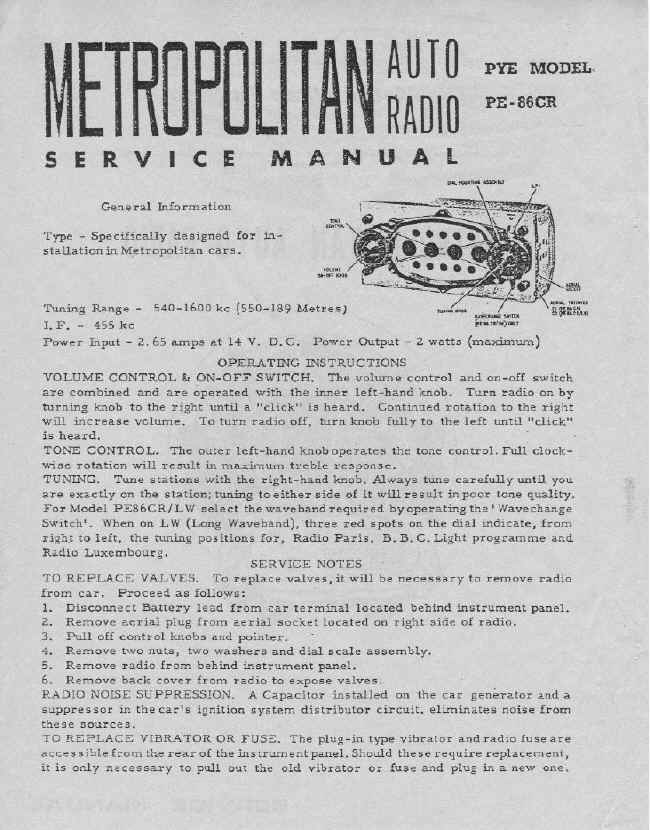

Met Radio Parts Price List   Price List of Met Radio Parts (cont..)   Met Radio Service Manual Cover and instructions

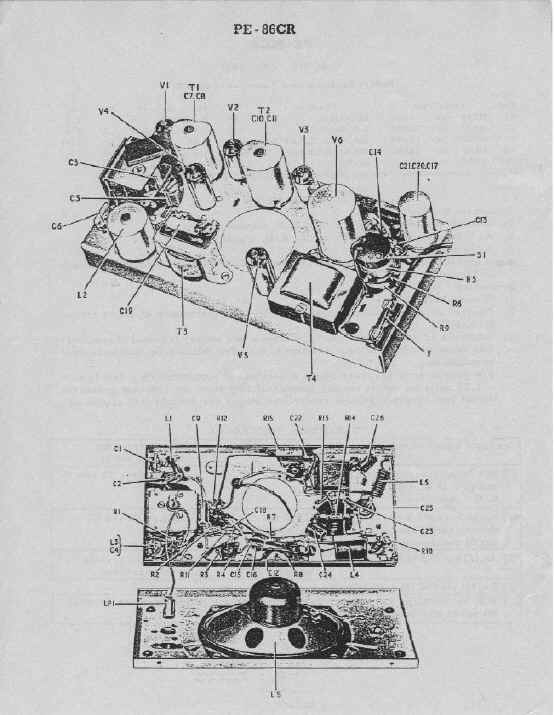

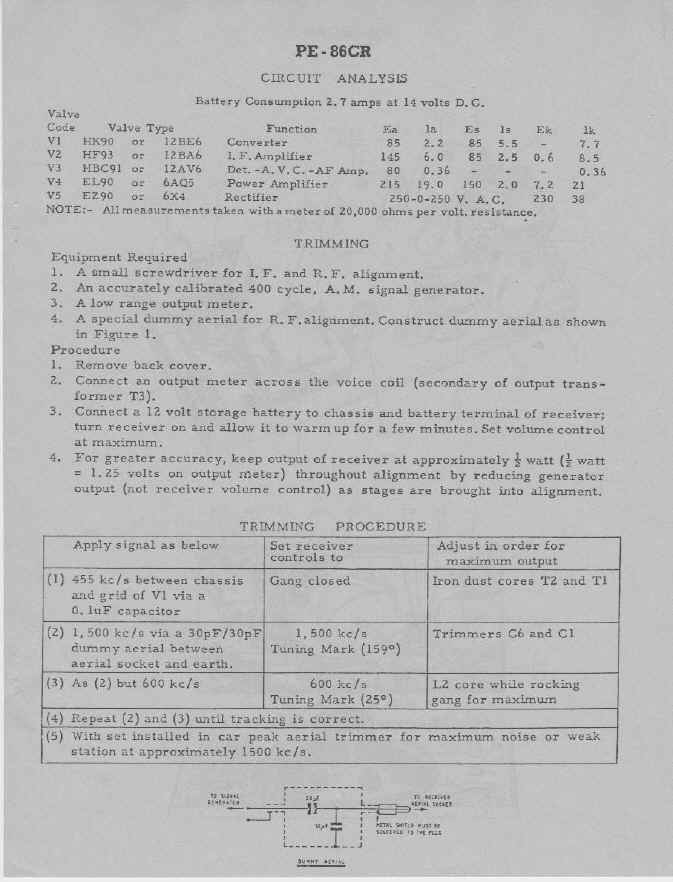

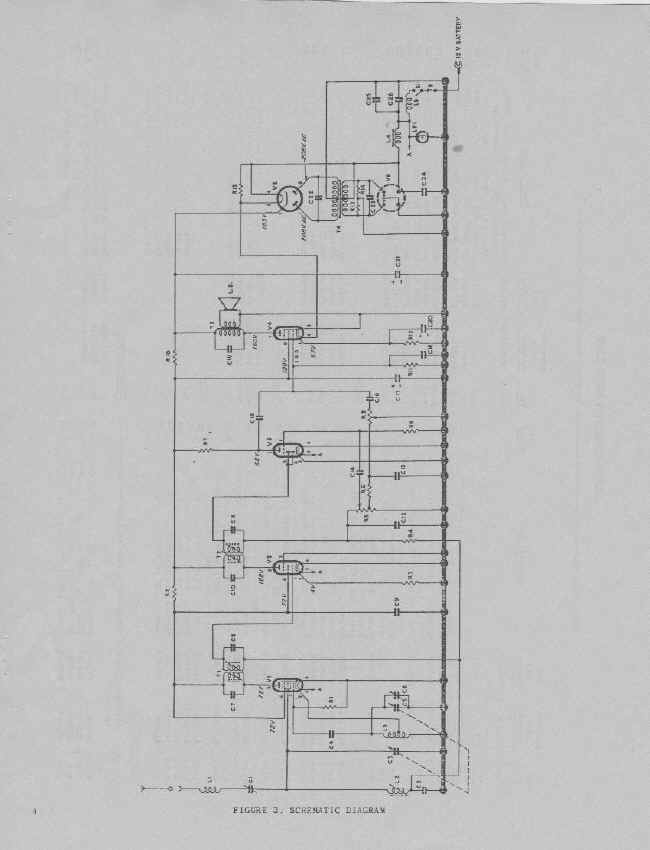

Met Radio Drawing   Met Radio Circuit Analysis   Met Radio Schematic
